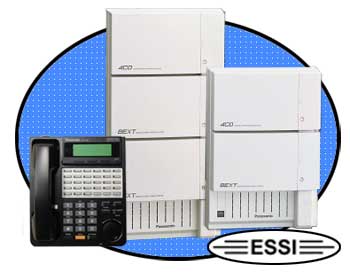

Panasonic KX-TD816 & KX-TD1232 Phone System

Panasonic KX-TD816 Phone System

Panasonic KX-TD816 Phone System

Call for Availability 800 619 9566

Panasonic KX-TD1232 Phone System

Panasonic KX-TD1232 Phone System

Call for Availability 800 619 9566

Panasonc Phones and Expansion Cards

Panasonic KX-TD816/1232
8 Port Extension Module (8EXT)

Panasonic KX-TD816/1232 8-Port Expansion Module

Provides expansion of 8 telephone extensions for both the KX-TD1232 and KX-TD816 existing systems.

$239.00                                add to cart

Panasonic KX-TD816/1232
4 Port CO Trunk Module (4CO)

Panasonic KX-TD816/1232 4-Port CO Trunk Module

Provides expansion of 4 incoming lines CO Trunks for both the KX-TD1232 and KX-TD816 existing systems.

$169.00                                add to cart

Panasonic KX-TD Digital Phones

Panasonic KX-TD Digital Phones

Many phones available refurbished for the Panasonic KX-TD308, KX-TD816, and the KX-TD1232 family of phone systems with a one year warranty.  Available in black or white.

Panasonic KX-TD Expansion Cards


Sale prices are while supplies last and 1 Year Warranty
Refurbished phones also available for the KX-TD
|    Panasonic KX-TD Expansion Hardware
Complete Panasonic KX-TD816/1232 Product Catalog

EZ-to-Use Features for Intelligent Call Management

The Panasonic KX-Td1232 and KX-TD816 Digital Super Hybrid Systems provide the power, flexibility and expansion capability to fully accommodate your growing business.  Designed with outstanding, time saving features that are easy to use, the Panasonic systems are versatile and future ready.

The Panasonic KX-TD816 is configured for 4 CO/Trunk lines in and 8 digital proprietary telephones, plus 8 single-line devices. Expansion module provides a maximum capacity of 8 lines plus 16 telephones and devices.

The Panasonic KX-TD1232 system is initially configured for 8 CO/Trunk lines in and 16 digital proprietary phones, plus up to 16 single-line devices.  A single-cabinet Panasonic KX-TD1232 system is expandable to 12 CO/Trunk lines in X 32 digital proprietary telephones and 32 single-line devices.  Connecting a second Panasonic KX-TD1232 cabinet increases the expansion capacity to the system maximum of 24 CO/Trunk lines in and 64 digital proprietary telephones and 64 single line devices.

The Panasonic KX-TD1232 and KX-TD816 Digital Super Hybrid Telephone Systems support Panasonic 7000, 7200, 7400 and 7700 analog telephones, single line devices and Panasonic 7400 series digital proprietary telephones, with out the need to buy extra adapters, cards or modules.  Voice mail ports facilitate integration with a Voice Processing System.  And both systems are equipped with the unique XDP extra device port capability for unprecedented flexibility and expansion power.

E System Sales, Inc. Links
Sales Terms   -   Privacy & Copy Right   -   About Us   -   Contact Us   -   Site Map

Automatic Route Selection
A Digital Super Hybrid System can help reduce long distance costs by automatically routing outgoing calls to the most cost efficient long distance carrier with in your network.  The system makes the selection based on pre-programmed time-of-day, day of week and call destination table.

Back-Up Operator
When the operator or other staff is unable to answer an incoming call the optional KX-TD191 DISA card can be used to provide an outgoing message after a designated number of rings.  Your call will then always be answered in a timely manner.

Caller ID Compatibility
Displays the incoming caller's phone number or name and number, when used with the Panasonic system display phone.  The system can automatically match a caller's number with a previously stored name and display that name on the LCD. Up to 50o names can be stored.

Caller ID Compatibility
to single line telephone devices.

With the addition of a KX-T171 module Caller ID information can be displayed on a single-line consumer telephone device connected to the system. (requires Caller ID service from service provider)

** requires Caller ID service from service provider.
** Requires optional caller ID card.

PC Based programming
Panasonic dealers can program the KX-TD1232 and KX-TD816 via an IBM-compatible computer.  programming data can be stored on a disk for future backups.  PC programming software is available to Certified Dealers only

CTI (Computer Telephony Integration)
The KX-TD1232 and the KX-TD816 systems conform to the CTI TAPI 2.1 standard, which permits software developers to integrate to TAPI 2.2 compliant software applications.

Door Phone & Door Openers
Add security to you facility to the optional Door Phone/Opener Adapter Card.  With this option installed our digital Super Hybrid Telephone Systems can interface with up to 4 door intercoms and can control up to 4 electronic door contact closures.  If you have more than one door intercom, you can assign each one a unique ringing pattern to help you distinguish which one was pressed.  You can also use these adapter cards to open a door from the telephone provided the door is equipped with an electric latch.

Direct Inward Dial (DID)
Panasonic Digital Super Hybrid Systems can be connected to Direct Inward Dial (DID) CO/Trunk lines provided by your telephone service provider with the addition of an optional KX-TD185 expansion module.  With DID service calls from outside the company will be directed to a specific extension, alleviating the need for an operator or attendant.

Direct Inward System Access (DISA)
Wit the optional KX-TD191 DISA card the KX-TD1232 system will provide a simplified "automated attendant" feature with up to 64 seconds on outgoing message time.  After dialing into the system, the caller obtains single-digit access to extensions, phantom extensions or ring groups any time during or after the message.  Additionally, callers can be required to dial a security code to access extensions or the system's outside lines.

Distinctive Ring
You can program up to eight different ring tones for the digital phones, giving phones in different areas or departments a distinctive rings.
Phantom Extension
For added call-routing flexibility, you can assign one extension number to several phones.  All phones will ring simultaneously when this extension is dialed
